Pallet/Carton Packing

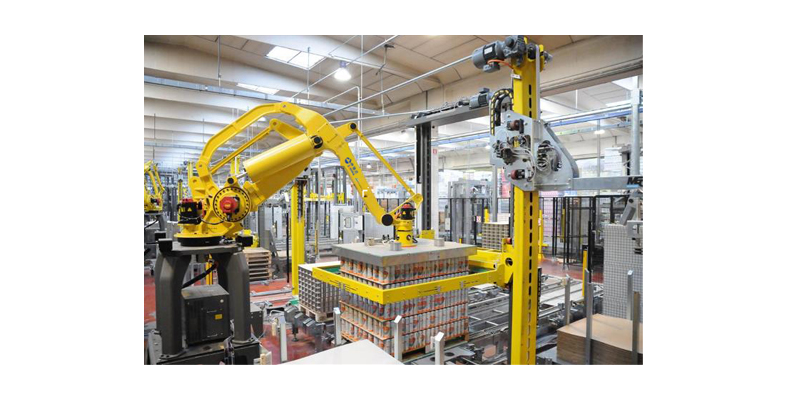

Robot Arm Palletizer
;)
;)
This robot arm palletizer consists of a ABB/Fanuc/Kuka robotic arm and a multi-function magnet/vacuum suction plate. Branded robotic arm for the main body can ensure the reliability and flexibility. The multi-function suction plate is not only used for picking and placing product, it picks and places layer pad and empty pallet as well. This machine also has smart sensing function. It can carry out works in a complicated production environment, meanwhile the sensing system protects operator’s safety too.
Highly flexiblepattern composition and standard operations.
High speed: 8 layers per minute.
Easily adjustable in case of modifications in medium-high productions.
Technical Parameters:
Applicable Products | Tinplate made 2 Piece Can, 3 Piece Can (Magnetic Suction) Aluminum made 2 Piece Can, 3 Piece Can (Vacuum) |
Capacity | 6-8 layers/min |
Load | 100-318 kg |
No. of Axis | 4-5 |
Pallet Size | 1000/800 x 1200 mm |
Palletizing Height | Max 2000 mm |
Power | 10 kW |
Compressed Air | Max 150 NL/min |
