Pallet/Carton Packing

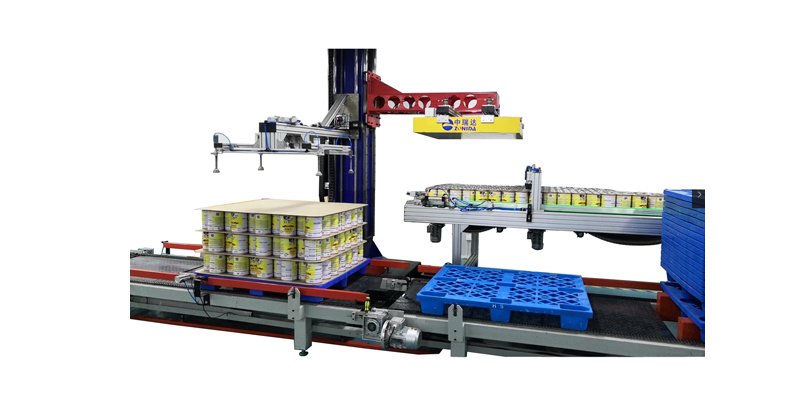

With Magnetic Plate and Two Column Framework. This coordinate palletizer/depalletizer consists of a Z direction guiding steel column, X and Y direction suction plates. X and Y suction plates are 90 degrees angle to each other that install on the Z direction steel column. During machine running, a servo motor powers the column to turn 90 degrees angle on left and right, then X and Y plates move up and down on the column. When X plate picks product, Y plate picks layer pad, and so on, the palletizing/depalletizing cycle is completed. At the end of pallet conveyor, a pallet dispenser/collector always stands by.
