For Aerosol Cans

Material：Tinplate

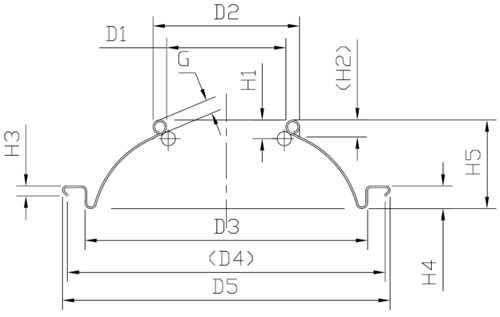

D5（Outer diameter of coil margin)：70.00±0.15mm

D4（Inside diameter of coil margin)：67.70±0.20mm

H3（Curl Height)：2.40±0.15mm

H4（Countersink Depth)：5.00±0.10mm

H1（Contact Height)：4.00±0.15mm

D3（Diameter)：60.20±0.20mm

D2（External Orifice)：31.20±0.10mm

D1（Internal Orifice)：25.40±0.10mm

Deformation Pressure：≥1.2/1.5/1.8Mpa

Burst Pressure：≥1.5/1.8/2.1MPa
